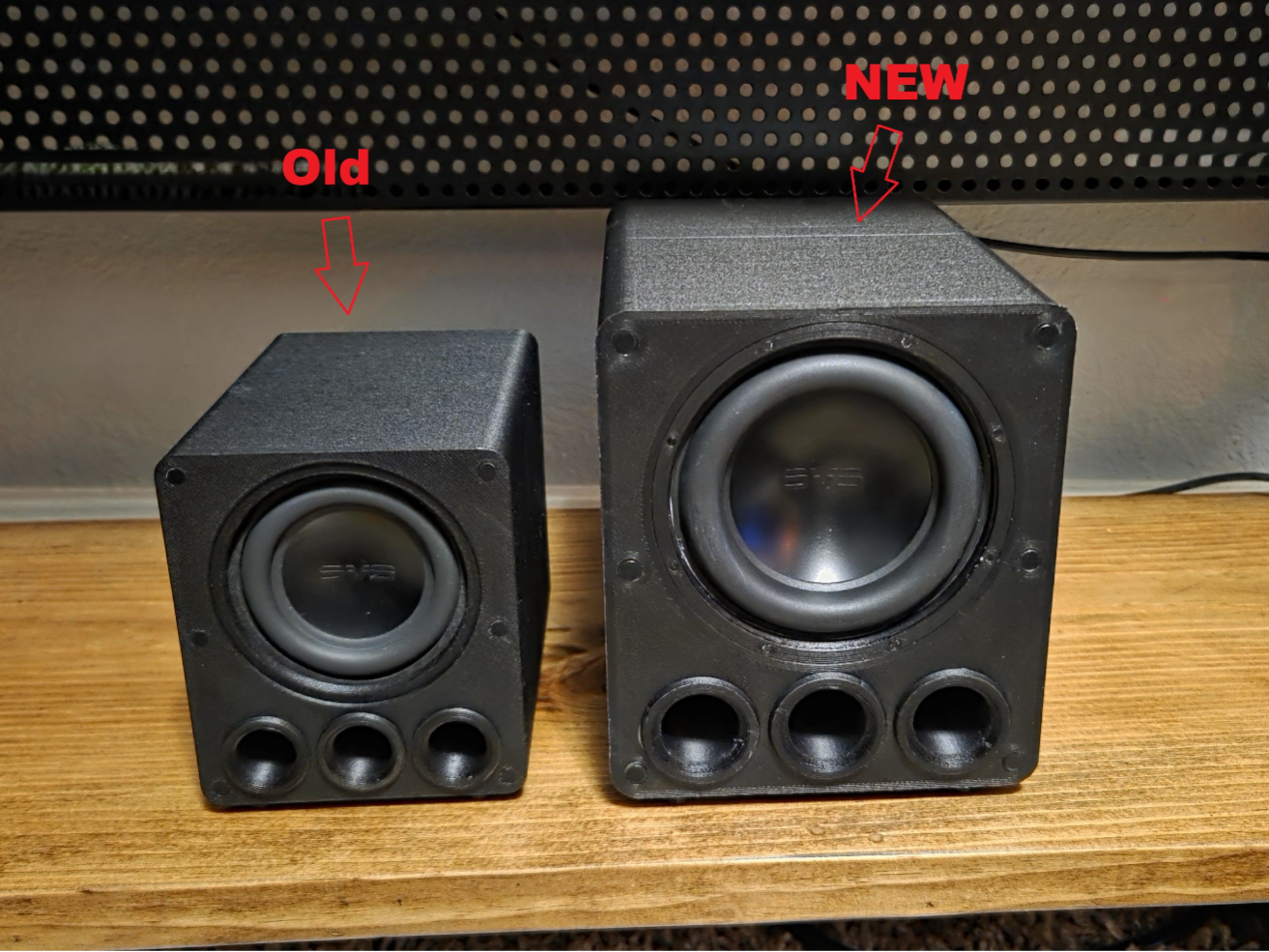

This is version 2 of my original mini SVS pb-17 Ultra that had a 2.5in woofer, this new version is larger to fit a 3.5in woofer! I also made the Kenwood MV7-D replica speakers shown in the videos, you can get it here! https://makerworld.com/en/models/3267323-mini-kenwood-mv7-mv7-d-speakers#profileId-3704472 ASSEMBLY: 1. Wire up and screw in the speaker from the inside 2. The port tubes need to be inserted and glued together, they come in 3 pieces, the front port sections, the elbows and the vertical port sections. These press fit ok but you probably want to glue them too. After the ports are installed you will need to place the support bar inside the box (it holds the back of the pipes vertical). I also have optional tpu port plugs (3) that you can insert into the vertical ports inside the box to block them off, I found that the bass and sound quality is much better with 2 ports plugged with such a small speaker but you can play with it and see what sounds best. 3. Pull wires through back plate hole (Or install spring terminals if using the alternate back plate) 4. install box back with 4 screws 5. install tpu feet on bottom of box (either with glue or with screws) Lasty the speaker grill is optional, but if you want to use one then you print it out, cover it with speaker grill fabric (using 3m spray glue), then you glue in 4x3mm magnets into both the box and speaker grill. I also included a file for the mini SVS logo for the speaker grill. PARTS LIST: (14) M3 x 5mm screws (8) 6x3mm round magnets (only needed if printing the front grill Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm 45mm x 21mm spring terminal (if using the backplate cutout for spring terminals) AIYIMA DC48V 10A GaN Power Supply (48v supply needed to get full power from the amp) AMP: DAJUNGUO S600X 2.1 Channel Amplifier Board 300W+300W+600W Power Output,TPA3255 Chip,Bluetooth 5.2 Stretchy speaker grill cloth and 3m spray glue (if printing front grill) PRINT FILES: There are two versions of the box, one with wood texture and one smooth. Also, there is an alternate backplate for those that don't have spring terminals, this version just has a small hole to pull your speaker wires though, you can find it in the stl/cad files under the download drop down menu. If you would like to leave a tip for my hard work you can do so here :D https://www.paypal.com/ncp/payment/Y5DRF7PN8S5AJ

Mini SVS PB-17 Ultra Subwoofer (V2)

by Turbosol · original on MakerWorld ↗

♥ 15⬇ 24🖨 7 prints

Print profiles

• 0.2mm layer, 4 walls, 20% infill

  ⏱ 23h 27m · 553 g · 3 material(s) · needs AMS

  Prints on: A1 0.4, P2S 0.4, H2C 0.4, H2D 0.4, A2L 0.4, H2D Pro 0.4, H2S 0.4, X2D 0.4PETG-CFPLATPU
